Magnetic Separators

Keller Products offers three distinct magnetic separation lines. These include in-sump magnetic assemblies for chip control, in-line magnetic filter assemblies, and magnetic rod inserts for standard bag filters. All employ 5,000 Gauss rare earth magnets for maximum removal efficiency.

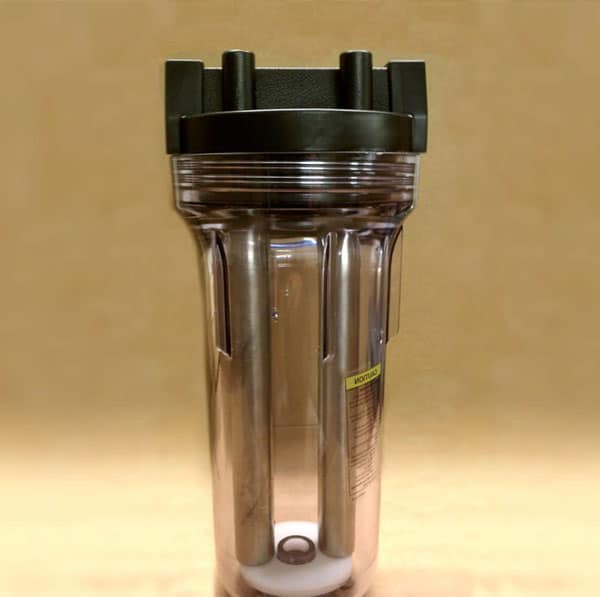

In-Line Magnetic Separators

Keller magnetic separators clean steel or iron chips from coolant or oil.

More Info

BENEFITS:

  • Inexpensive: Unique Assemblies Utilize Standard Filter Housings
  • Order only the magnetic elements to fit your existing standard 5″, 10″, & 20″ filter housings without modification, or order from Keller’s complete line of filter assemblies
  • Filtration as fine as 5 microns
  • Ideal For Water-Base Lubricants or Straight Oils

FEATURES:

  • Filter Assemblies from 1/2″ to 1″ Lines Sizes Available
  • Ideal For Water-Base Lubricants or Straight Oils
  • All products feature 2 Powerful 5,000 Gauss Rare Earth Magnetic rods in each assembly
  • Flow rates to 70 GPM
  • Immediate shipment from stock
SEE ALL MODELS
magnetic sep

In-Sump Magnetic Separators

Keller magnetic separators clean steel or iron chips from coolant or oil in sumps.

More Info

BENEFITS:

  • Inexpensive: Unique Assemblies drop right into your machine sump
  • In-sump magnet separators greatly reduce solids load on coolant pump or in-line filters
  • Filtration as fine as 5 microns
  • Ideal For Water-Base Lubricants or Straight Oils
  • Easy to install in sump, easy to remove for cleaning

FEATURES:

  • Magnetic Assemblies in either 4″ to 9″ Sizes Available
  • Optional stainless steel cleaning sleeve available for either size
  • All products feature Powerful 5,000 Gauss Rare Earth Magnetic rods
  • Install magnetic rod in sump horizontally or vertically
  • Immediate shipment from stock
SEE ALL MODELS

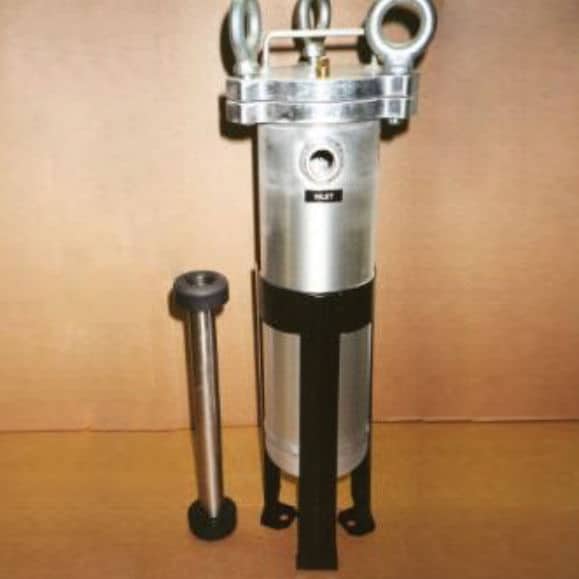

Cleanable Magnetic Rods

Permanent rare earth magnetic rod placed in filter bag cleans steel and iron chips from coolant or oil, extends life of filter bag 5 times or more.

More Info

BENEFITS:

  • Inexpensive: Unique Assemblies drop right into your bag filter
  • Remove ferrous particles before coolant flows through filter bag to extend life of filter bag 5X or more
  • Filtration as fine as 5 microns
  • Ideal For Water-Base Lubricants or Straight Oils
  • Easily removed for cleaning

FEATURES:

  • Magnetic Assemblies fit standard #4, #1, and #2 bag sizes
  • External stainless steel sleeve is removed for easy cleaning of magnet
  • All products feature Powerful 5,000 Gauss Rare Earth Magnetic rods
  • Neoprene bumpers on ends of magnet protect filter bag from damage—Simply place magnet inside filter bag, no installation hardware required
  • Immediate shipment from stock
SEE ALL MODELS

Additional Information:

Keller’s magnetic separators eliminate particles and chips of steel and iron from water based coolants and cutting oils. Benefits include:

  • Minimize equipment downtime
  • Improve tool life and parts finish
  • Reduce or eliminate costly filter media replacement

Keller offers 3 magnetic separation equipment product ranges:

  1. In-sump magnetic assemblies,
  2. Inline magnetic filters, and
  3. Magnetic rod inserts for standard bag filters.

All three employ 5,000 Gauss rare earth magnets for maximum removal efficiency.



Superior Quality Magnetic Coolant Filters

Magnetic separators provide a unique solution for removing iron and steel chips that can contaminate the coolant used in metalworking operations. At Keller, we provide a variety of magnetic separation equipment to suit different industrial requirements:

  1. In-sump magnetic assemblies are placed inside the coolant sump to remove iron and steel chips. As with all Keller magnetic separators, our in-sump assemblies include powerful 5,000 gauss rare earth magnetic filters. Our in-sump products can be installed either horizontally or vertically. They are easy to install and can be supplied with removable stainless sleeves for easy cleaning.
  2. Inline magnetic filters are ideal for removing iron and steel chips from coolant systems. In addition to the dual 5,000 Gauss magnetic rods employed in these assemblies, what makes these designs especially attractive is that the magnetic elements are designed to fit standard filter housings.  This allows the end-user the option to purchase just the magnetic filter elements for existing housings.  It also provides Keller access to standard housings, which allows for Keller to provide full assemblies at a fraction of the cost of competitive systems.  These magnetic filtration systems:
  • Can be used for both water-based lubricants or straight oils,
  • Continuously remove metal chips in an external pumping circuit, and
  • Can be used in conjunction with a Keller TKO pump/skimmer unit to reduce solids entering the tramp oil skimmer.
  1. Magnetic rod inserts for bag filters are cost-effective magnetic separators that can be used in conjunction with Keller’s bag filters to extend the life of filter bags by 7 times or more. Magnets for bag filters are placed inside the bag filter to eliminate metal particles before coolant flows through the filter bag. Rod inserts are very simple to install, and include the neoprene bumpers that protect the filter bag, so that no installation hardware is necessary. The removable stainless cleaning sleeve is included wit hall bag filter magnetic assemblies.



Click on one of the images above to view the specific model information and specifications of the different Keller magnetic filter product ranges.
